Rotating Shears for Excavator

The rotating demolition tools of the Dedicated Demolition Line (DDL) have been developed for primary as well as secondary demolition.

Their jaws are designed for each application area within the demolition job site: there are combi-crushers (C), demolition crushers (D) and pulverizers (P). The twin rotation motors provide an extra rotation power for the rotation that is equipped with an additional oil passage. The swing bearing is double pivoted. The shear also features rotation circuit filters and exchangeable teeth, shrouds and cutting blades. The powerful cylinder has a robust pin suspension and features a two chamber technique with speed valve.

The Dedicated Demolition Line is also available with the patented DemaPower cylinder system that provides up to 20% more power and obviously faster cycle times, thanks to the four chamber technique and a speed valve.

The pulverizer type of both versions also features an exchangeable ground tooth-plate.

Both Dedicated Demolition Line versions are characterized by an excellent speed/power to weight ratio, making them the perfect partners on every demolition site.

Dedicated Demolition Line with Two-Chamber Cylinder Technique:

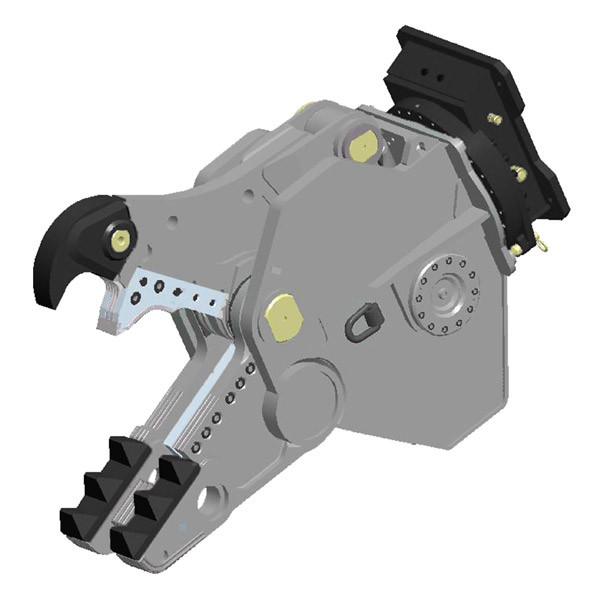

DLC rotating combi crushers available for excavators with 18 up to 50t / 39600 up to 110000 lbs operating weight, depending on the size.

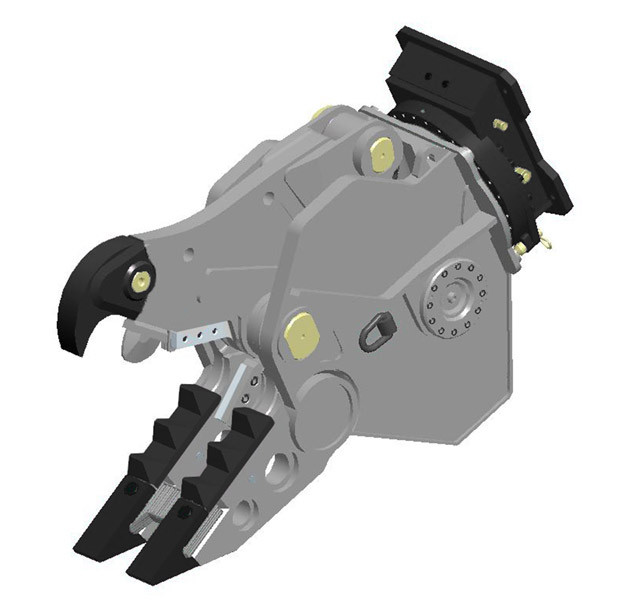

DLD rotating demolition crushers available for excavators with 18 up to 50t / 39600 up to 110000 lbs operating weight, depending on the size.

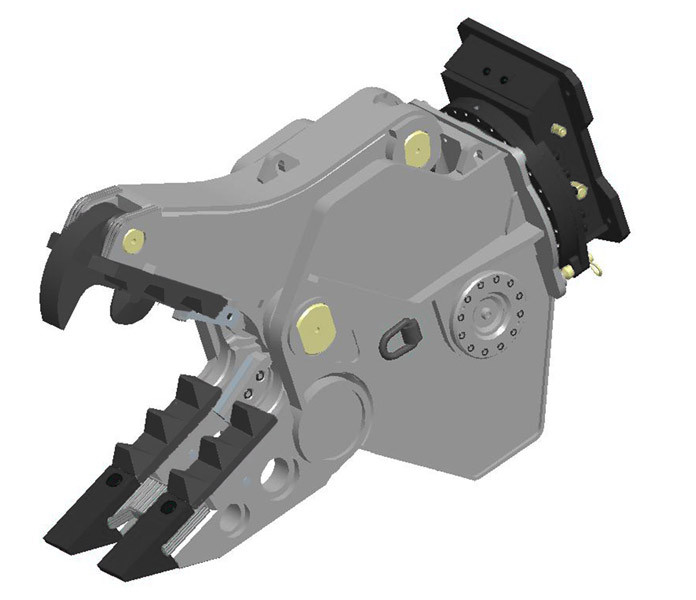

DLP rotating pulverizers available for excavators with 18 up to 50t / 39600 up to 110000 lbs operating weight, depending on the size.

Dedicated Demolition Line with DemaPower Four-Chamber Cylinder Technique:

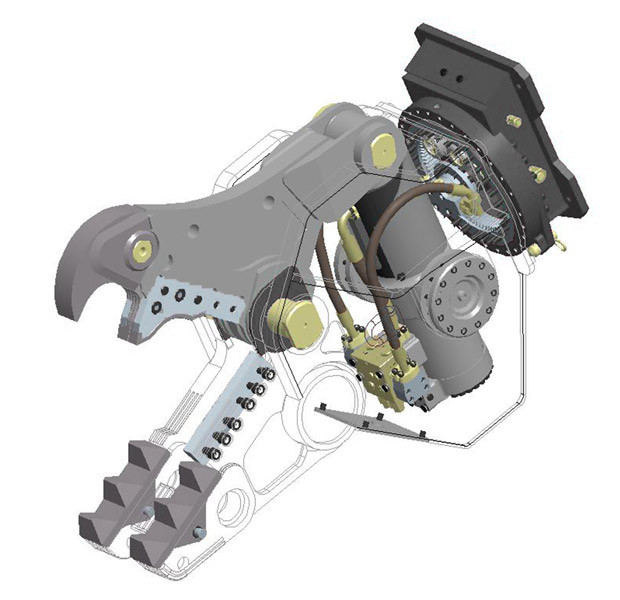

DRC rotating combi crushers available for excavators with 18 up to 50t / 39600 up to 110000 lbs operating weight, depending on the size.

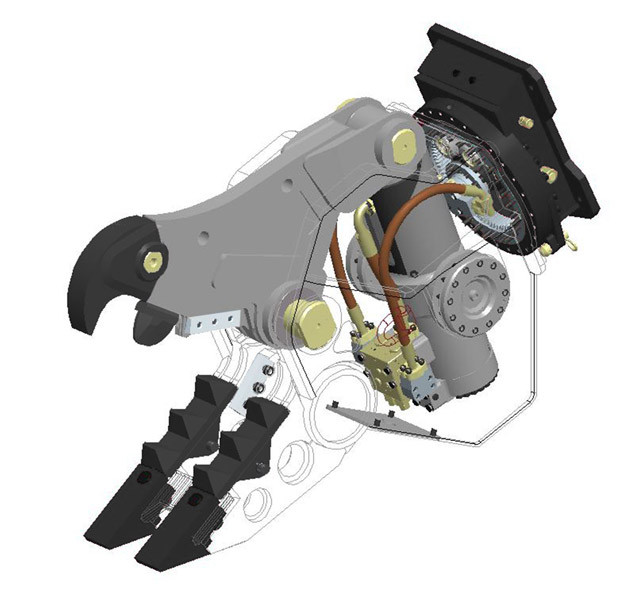

DRD rotating demolition crushers available for excavators with 18 up to 50t / 39600 up to 110000 lbs operating weight, depending on the size.

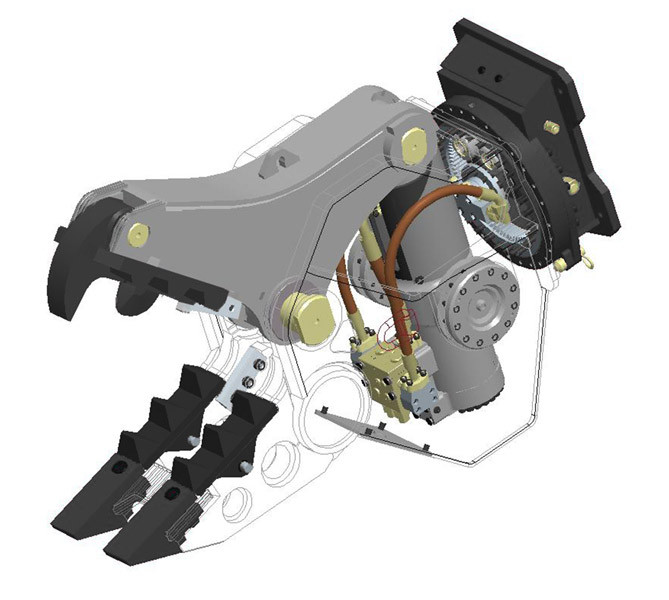

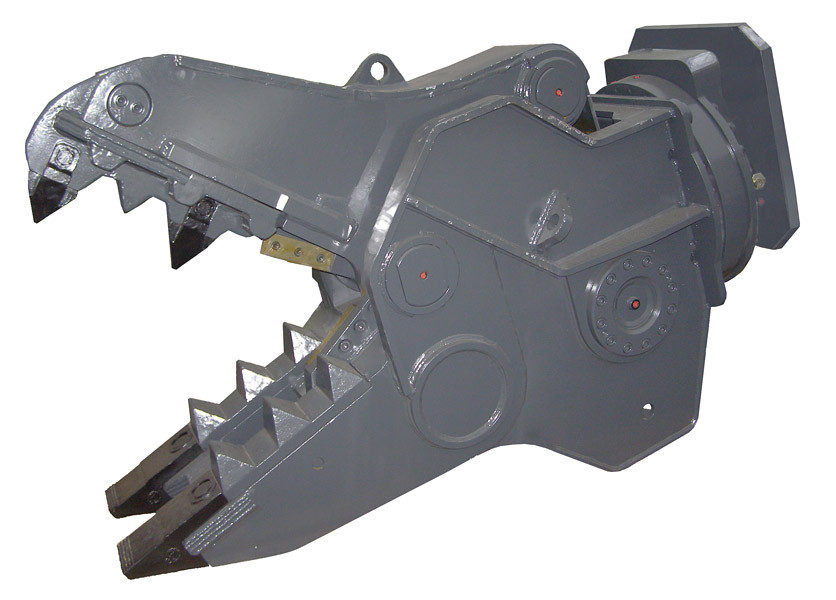

DRP rotating pulverizers available for excavators with 18 up to 65t / 39600 up to 143000 lbs operating weight, depending on the size.
